Heating Element Kit, 5500 watt TC Ripple, Weld or solder TC, Clamp, Gasket
Heating Element Kit, 5500 watt TC Ripple, Weld or solder TC, Clamp, Gasket



Our Price: $88.50
Sale Price: $83.50
Savings: $5.00


Product Code: ELEMENTKIT_TCRIP_WELD
Qty:



The following items are included with this product:

Description

If you don't have anything on your kettle and you want an easily removable element, this kit is for you. This version requires TIG Welding or Silver Soldering

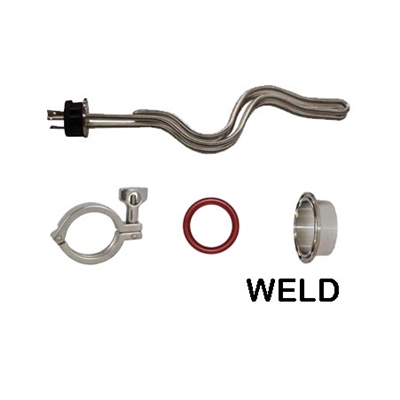

The included parts are shown in the picture; 5500 watt integrated TC element, TC clamp, TC gasket, TC weld ferrule. The TC weld ferrule is usually TIG welded into your pot by a QUALIFIED welder. You can also silver solder the weld ferrule into your pot. This requires a 1-1/4" hole to be drilled and you will also need our silver solder kit and pull through install tool.

What this kit does NOT come with, but you will likely need, will be found in the optional accessories list on the right. 10 gauge cable with L6-30R on the end.



Element length is approximately 14.25" Long to the TC flange. With the added 1/2"-3/4" from the TC flange, your pot must be at least 13.75" in diameter.

Everything is 304 High polish stainless steel.

These are made in China. Warranty is 3 months from date of purchase and does NOT cover damage due to dry firing. These elements must be submerged in liquid any time power is applied.


It is extremely important that you consult with an electrical professional for advice or wiring help. Under no circumstances should these be used without proper wiring, ground fault circuit protection, over current circuit protection. We are not licensed electricians so we cannot provide wiring advice.
Instructions
Average Rating: Average Rating: 3.5 of 5 3.5 of 5 Total Reviews: 3 Click Here to Write a Review »

Accessories
Receptacle, Nema L6-30R Twist Lock Cord Receptacle for 240v, 30 amps
Our Price: $13.99

Add
Receptacle, Nema L6-30R Twist Lock Cord Receptacle for 240v, 30 amps
Plug, Nema L6-30P Twist Lock Plug for 240v, 30 amps
Our Price: $9.99

Add
Plug, Nema L6-30P Twist Lock Plug for 240v, 30 amps
Tungsten Carbide Hole Saw Drill Bit, 32mm or 1-1/4, for Stainless Steel
Our Price: $16.00

Add
Tungsten Carbide Hole Saw Drill Bit, 32mm or 1-1/4, for Stainless Steel
Cable, 10/3 Cord with Nema L6-30R Twist Lock Cord Receptacle
Our Price: $24.99

Add
Cable, 10/3 Cord with Nema L6-30R Twist Lock Cord Receptacle
Cable, 10/3 SJEOOW High Temp Portable Power Cable by the foot
Our Price: $1.75

Add
Cable, 10/3 SJEOOW High Temp Portable Power Cable by the foot
Silver Solder Kit
Our Price: $12.99

Add
Silver Solder Kit
Cable, 10/3 Extension Cord SIX FEET (6') Nema L6-30 Male and Female
Our Price: $30.00

Add
Cable, 10/3 Extension Cord SIX FEET (6') Nema L6-30 Male and Female
Install Tool (pull through flaring) for 1.5" TC Weld Ferrules
Our Price: $29.99

Add
Install Tool (pull through flaring) for 1.5" TC Weld Ferrules
Cable, 10/3 Extension Cord TEN FEET (10') Nema L6-30 Male and Female
Our Price: $31.00

Add
Cable, 10/3 Extension Cord TEN FEET (10') Nema L6-30 Male and Female


  0 of 0 people found the following review helpful:

5 of 5 best upgrade I could make September 22, 2020
Reviewer: Michael Johnson from Grand Rapids, MI United States
This kit works great. I purchased this over 2 years ago and it was the best way to go all grain. It would take me 4 to 6 hours to brew extract on the stove with this it takes about 3 hours total.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 Very Happy July 1, 2019
Reviewer: Steve from Pennsylvania
This should have a better rating. After talking to Bobby, I decided to move forward with this since I wished to solder my TC fitting on. I purchased the pull-through tool and hole saw bit as he described and hoped for the best. Turns out, the hole saw worked great and the pull-through tool was extremely simple to use.  Just watch his videos and it's a piece of cake. The pull though tool actually seats the TC fitting nicely and holds it in place for soldering. The key to actually soldering is adequately heating the SURROUNDING area and to take your time doing it. Again, if you watch his videos, he clearly shows you how to do this stuff. I'm no pro but have sweated copper pipe a few times.  I'm very happy with the results.

Also, the 5500 watt ripple did great for my first 10 gallon batch. This baby can heat, and I had no scorching.

Was this review helpful to you?

  1 of 1 people found the following review helpful:

1 of 5 Ground prong broke free after 6 months use November 18, 2017
Reviewer: David Erb from Tryon, NC United States
Bought two of these and both ground prongs broke loose after 6 months of use. They were not abused in any way, simply plugging and unplugging was the only wear they received. One broke loose from the post and is unusable, the other broke free at the base and is not safe as it is not making a consistent ground connection.

Was this review helpful to you?
