U-Coupler (Guinness) Tap and Line Cleaning Unit (CIP, Clean in Place)

Home > Equipment > Kegging Parts > Cleaning Accessories >

Our Price: $74.00

Quantity in Stock:4

Product Code: U_COUPLER_CIP

Qty:

Description

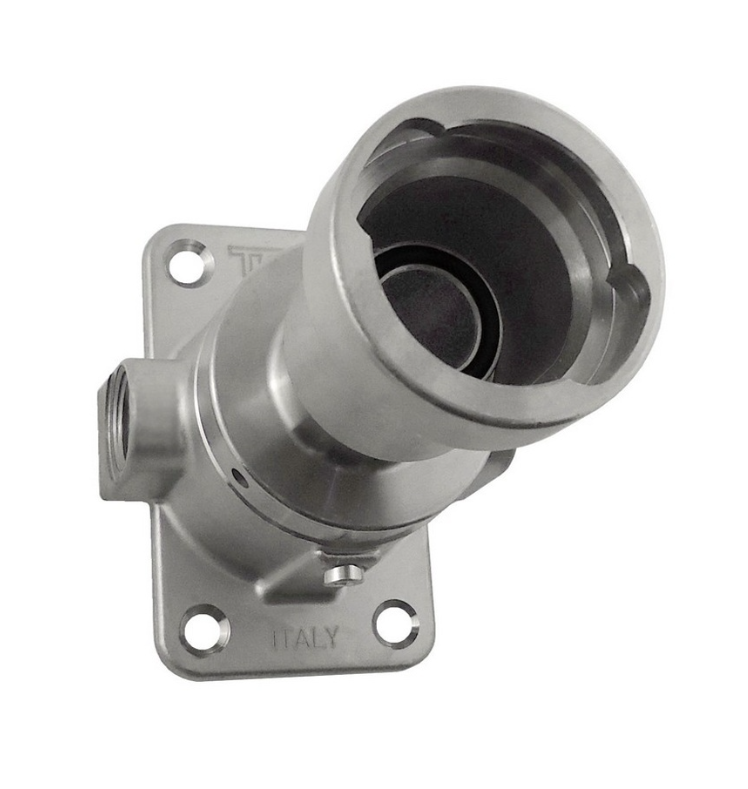

This device is typically mounted in the cold room of a bar that serves Guinness/Harp on draft. When it's time to clean the coupler and draft lines, the coupler is locked on to the device (just like it's normally connected to a keg) and the device is fed with cleaning solution and then through the lines.

The cleaner input port is 3/8" Female NPT thread and there is also a "through" port if you were going to daisy chain to other cleaning heads. This can just be plugged with a 3/8" NPT plug.

Note that when the U-coupler is detached or untapped, the cleaning solution does not flow out. It is designed that way because these would be banked in a lineup and would only dispense into couplers that are attached and in the tapped position.

For single line cleaning applications, we can adapt the cleaner input port to either male beer thread, corny keg ball lock post or hose barb. Just contact us for consultation. We'll get you set up for however you plan to do it.
