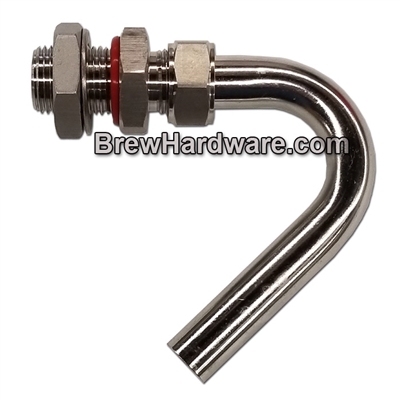

True Weldless Bulkhead - With Edge Pickup Diptube
True Weldless Bulkhead - With Edge Pickup Diptube



Alternative Views:


Our Price: $31.00

Quantity in Stock:(Out of Stock)


Product Code: TRUEBULKHEADEDGE


Bulkhead Hole Size*:


Qty:
Description

A weldless bulkhead is used to provide a liquid-tight port into your brewing vessels. This is an alternative to having a coupling or spud welded or soldered in.

This version is a combination of our True Bulkhead with Male Threads and the thread on High Flow Diptube for Edge Pickup.

Our new line of "True Bulkheads" were completely redesigned from scratch. The entire homebrew industry is flooded with makeshift bulkhead designs that are only a small step up from the DIY parts you'd find at a hardware store. While we were confident in the performance of our previous bulkheads made from off the shelf parts, the new True Bulkheads solve several shortcomings and look sharp in the process.

All varieties of True Bulkheads:
  1. Use a huge hex size with a machined O-Ring containment groove (gland). When used with an oring, you can tighten the bulkhead with gorilla strength for stability and the gasket will not budge or get damaged.
  2. May also use large OD silicone flat washers for holes drilled over 7/8".
  3. Are machined from a single piece of hex bar stock for less places for crud to hide.
  4. Rely on an exterior locknut to make the gasket squeeze. No more trial and error with various shim washer thicknesses and playing teflon tape Olympics.
  5. Accommodate vessel wall thicknesses up to 3/8" or 8mm thick while still leaving enough male thread for a ball valve or any other female threaded fitting.
The theme here is that these bulkheads are in a different league and we think the pricing is unbelievably reasonable for what you get.

NOTE: If you are installing this into an existing hole that is larger than 13/16", such as 7/8" or more like in Rubbermaid Coolers, please select the option for the larger flat silicone gasket in the option dropdown. The standard solution DOES fit Igloo Cylindrical coolers just fine.

Install Notes:
  • Drill a clean 13/16" diameter hole in your pot taking care to avoid any wall contours that may prevent the interior hex from sitting flat on the inside wall of the vessel. It is also important to remove any sharp edges or "burrs" from the inside edge of the hole, otherwise the oring can get torn. Insert the threaded portion of the unit through the hole from the inside of your pot or keg with only the oring in place. On the outside, install the metal washer and locknut and snug everything up with a pair of wrenches. Hint, it's best to hold the interior hex so that one of its points is facing up. It's better to hold the interior fitting still and tighten the exterior nut to protect the gasket/oring.

Average Rating: Average Rating: 5 of 5 5 of 5 Total Reviews: 6 Click Here to Write a Review »

  0 of 0 people found the following review helpful:

5 of 5 Great addition to BK September 26, 2022
Reviewer: Derek McLaren from Franklin, TN United States
This was the perfect addition to my boil kettle. Worked great for my last brew day. Left very little wort behind and allowed for whirlpool. Highly recommend.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 Great fit August 23, 2020
Reviewer: Ben Wells from San Diego, CA United States
I put it on and tighten it up no leaks no runaway oring. The o ring is on the inside of the kettle so it won’t get scorched.
I am looking forward to my next brew.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 It's big August 16, 2020
Reviewer: Wayne Smith from Manchester, NJ United States
The bulkhead installed easily.  I called BH to make sure I installed it correctly and Bobby helped me out.  The dip tube is solid and bigger than I thought.  Tight fit but should work perfectly.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 Works perfectly May 16, 2020
Reviewer: Philip from Monroe, VA United States
No leaks!

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 Zero leaks, excellent hardware April 27, 2020
Reviewer: Sean from OH United States
I drilled two holes in my kettle (sourced elsewhere) for this and another fitting, both from BrewHardware. First try, neither leaked. Excited to try it out on a brew day!

Was this review helpful to you?

View All Customer Reviews
